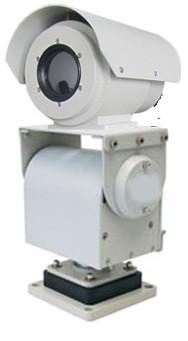

Infrared Optical Long Distance Thermal Camera Outdoor Night Vision Security

Jinan Hope-Wish Photoelectronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Infrared Optical Long Distance Thermal Camera Outdoor Night Vision Security

Brand Name : Hope-Wish

Model Number : TC6102

Certification : CE,FCC

Place of Origin : China

MOQ : 1 pc

Payment Terms : L/C, T/T, Western Union

Packaging Details : wooden case

Price : Negotiable

interface : Remote OSD setting

Spectral range : 7.5~14μm

Sensor : Uncooled UFPA sensor

Resolution : 640*512

Pan tilt : 360

ONVIF : support

Contact Now

TC6102 Long Range waterproof Thermal Security Camera for Firshery surveillance

TC41 series middle distance thermal camera is designed based on the latest 5th generation uncooled infrared technology and infrared optical technology. With 17um 336x256 resolution uncooled FPA sensor, advanced digital circuit and image processing technology, the camera could supply a much good image. And the infrared lens using AS optical technology have a detection distance 300m~3km while its size and weight is decreased a lot. Aluminum alloy housing sealed with nitrogen and weatherproof IP66 make sure the camera works steadily outdoor.

Feature:

  1. 17um 640x512 resolution uncooled FPA sensor, advanced digital circuit and image processing technology, the camera could supply a much good image.
  2. the infrared lens using AS optical technology have a detection distance 300m~3km while its size and weight is decreased a lot.
  3. Aluminum alloy housing sealed with nitrogen and weatherproof IP66 make sure the camera works steadily outdoor.

Application

City safety, oilfield safety, railway security, night gathering evidence.

Technical specification

Model TC6102- S TC6105- S
Detection Vehicle: 1700m Vehicle: 4200m
  Human: 720m Human: 1640m
Identification Vehicle: 420m Vehicle: 1200m
  Human: 180m Human: 470m
Sensor 5th generation UFPA sensor
Resolution 640×512 pixel, 9HZ
Spectral range 7.5~14μm
NETD 50mK
Focal length 20mmF1.0 50mmF1.0
Field of view(horizontal) 15.5°X 11.6° 6.5°X 4.8°
Image processing 1. Stable operation temperature without TEC, starting time less than 4 seconds
2,SDE digital image processing
3,10 pseudo color and B/W, B/W conversion
4,AGC
5,2X digital amplification
PTZ(Option) 1. Duty: 10kg
2. Rotation: pan: 0~355°, tilt: -60~+10°
3. Rotation speed: Pan: 7°/S, tilt: 3.4°/S
4. 32 presets
(optional variable speed PTZ)
Interface 1. RS-485(PELCO D protocol, Baud rate 2400bps),RS-232(optional)
2. Remote OSD setting
3. PAL/NTSC video output
4. AC24V/DC12V
5. Waterproof aviation connector
Environment parameters 1. One integral aluminum alloy housing
2. Operational temperature: -35°~55°(-45° optional )
3. Power consumption: common 8W, peak 36W(PTZ excluded)

* The detection distance is related to the object and environment etc. Please contact with us for further information

Infrared Optical Long Distance Thermal Camera Outdoor Night Vision Security

Infrared Optical Long Distance Thermal Camera Outdoor Night Vision Security

Infrared Optical Long Distance Thermal Camera Outdoor Night Vision Security

Infrared Optical Long Distance Thermal Camera Outdoor Night Vision Security
